ALR4000

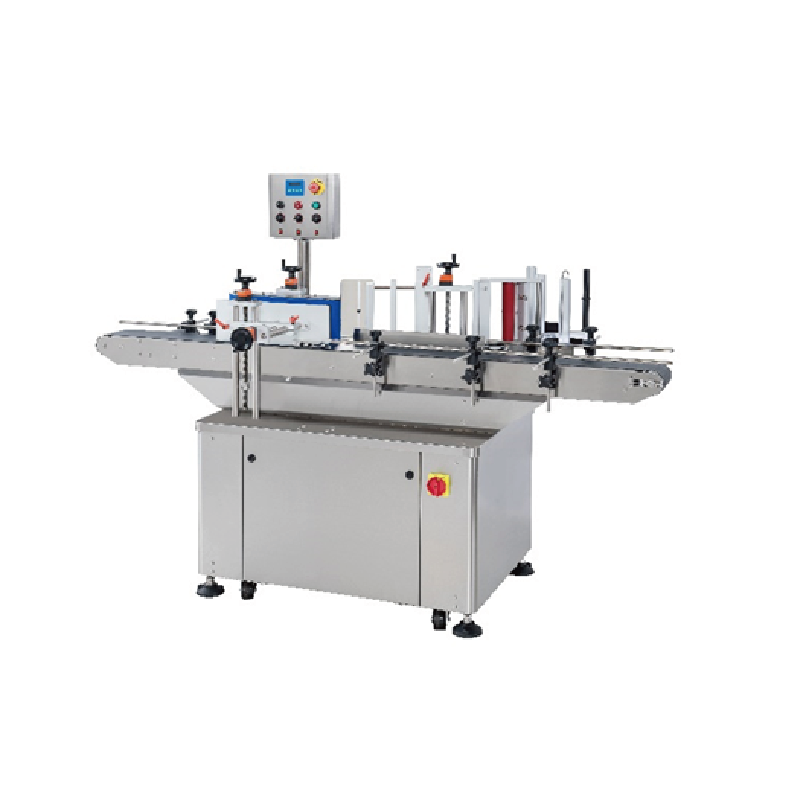

Automatic Round Bottle Labeling Machine
- Height and angle adjustable, suitable for various bottle types
- Labeling and coding completed simultaneously to improve efficiency
- Stepper motor with encoder control for stable and precise operation
- Photo-eye automatic detection for quick changeovers without adjustment
- Made of #304 stainless steel for durability and sleek appearance
Features
The NLR-400 is a versatile automatic round bottle labeling machine driven by a stepper motor and controlled via a microcomputer system. It efficiently labels various cylindrical and oval bottles, including metal, plastic, and glass containers. Supports full-wrap or half-wrap labels and works with self-adhesive, tamper-evident, and laser labels. High-precision application ensures fast, accurate labeling for diverse production needs.
Specification
| Model | ALR-4000 |
|---|---|
| Machine Dimensions (L×W×H) mm | 930W × 1780D × 1200H mm |
| Power Supply | 110V or 220VAC, 50/60Hz |
| Labeling Speed (pcs/min) | 40–120 pcs/min |
| Bottle Diameter | Ø16–90 mm |
| Bottle Height | 30–160 mm |
| Label Width | 10–100 mm |
| Label Length | 20–300 mm |
| Label Head Drive | Stepper Motor |
| Label Roll | Inner Ø 75 mm, Outer Ø 300 mm |
