ASL-1000/2000 series

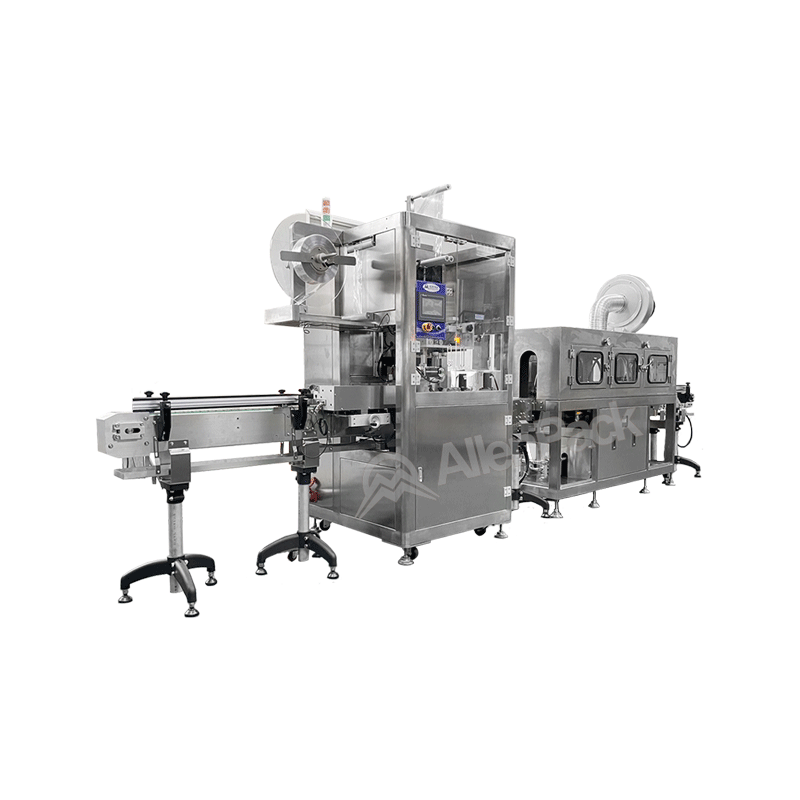

Automatic Sleeving Machine
Shrink Packaging Machinery Manufacturer
The automatic shrink sleeving machine from Allen Pack can easily be integrated with your company's existing packaging lines or we can also provide a complete system which would include the applicator, conveyor, and heat tunnel. It’s suitable for all bottles with various width range and label position application.
The automatic shrink sleeving machine from Allen Pack can easily be integrated with your company's existing packaging lines or we can also provide a complete system which would include the applicator, conveyor, and heat tunnel. It’s suitable for all bottles with various width range and label position application.
Features
- Easy adjustment, operation, and maintenance.
- Strong structure - Making the machine more durable.
- Various production capacities for diverse applications.
- Performance guarantee and product warranty.
- Reduces business costs and boosts efficiency.
Specification
| Model | ASL-1000 | ASL-2000 |
|---|---|---|
| Dimension | 1505W * 1060D * 2430H mm | |
| Electric Power | AC 3-Phase 220V/380V | |
| Speed (bpm) | MAX 250 | 250~800 |
| Diameter Of Product | Ø30 ~ 140mm | |
| Height Of Product | Max. 320mm | |
| Material Of Label | PVC / PET / OPS | |
| Thickness Of Label | 0.025mm ~ 0.08mm | |
| Height Of Label | Max. 300 mm | |
| Diameter Of Paper Core | 3” / 5” / 6” / 10” | |

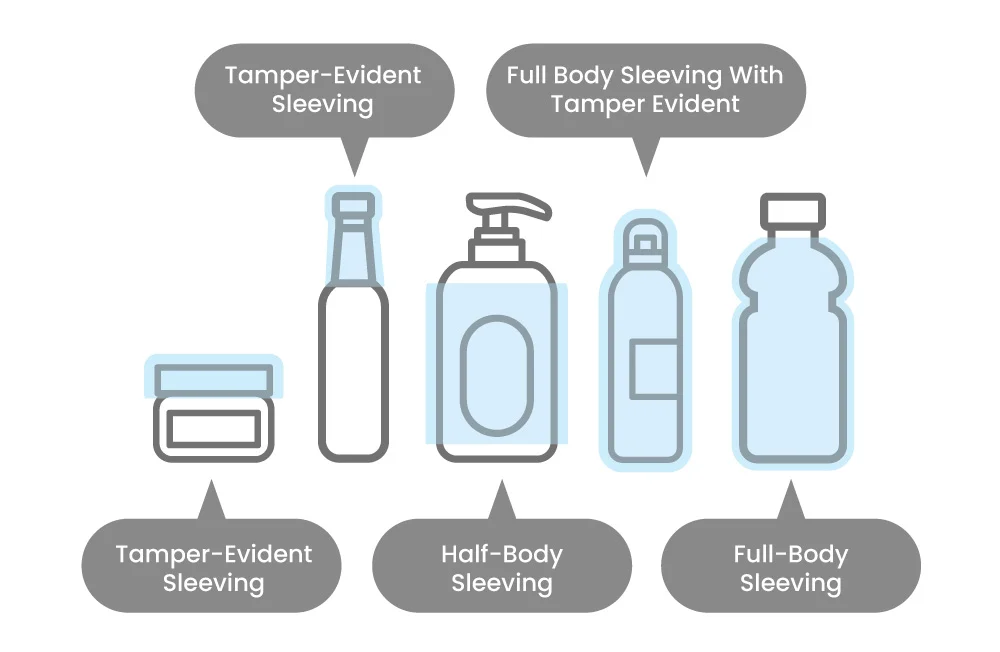

Container Diagram
Optional
Charge Coupled Device (CCD) Intelligent Vision Inspection System
Automatic Adjustment of mandrel
- Assists in rejecting products with sleeving errors.
- Aids in locating and correcting product direction.
Automatic Adjustment of mandrel
- Automatically adjusts the mandrel for different products, saving manual adjustment time.
- Enhances precision in mandrel positioning through an automated system.
