AHL-1000 series
Horizontal Shrink Sleeving Machine
Shrink Packaging Machinery Manufacturer

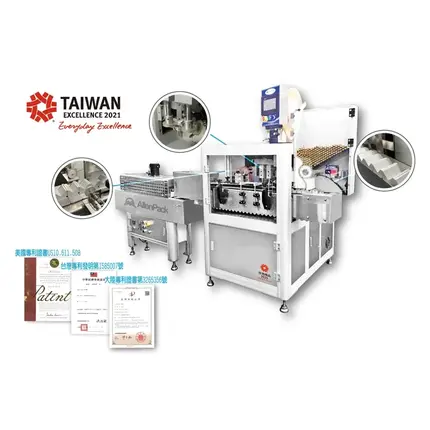

The automatic shrink sleeving machine from Allen Pack can easily be integrated with your company's existing packaging lines or we can also provide a complete system which would include the applicator, conveyor, and heat tunnel. It’s suitable for all bottles with various width range and label position application.
The automatic shrink sleeving machine from Allen Pack can easily be integrated with your company's existing packaging lines or we can also provide a complete system which would include the applicator, conveyor, and heat tunnel. It’s suitable for all bottles with various width range and label position application.
Features
- PLC controlling system with an HMI panel for smooth setting shifts.
- Suitable for small-sized products that are difficult to stand. (Product of Cosmetics, pharmaceutical….)
- High-quality and high-response electric components.
- Customized to meet each client's needs and integrate with other machinery.
- Save the labor costs and improve the efficiency.
Specification
| Model | AHL-1000 |
|---|---|
| Dimension | 840W * 1190D * 1900H mm |
| Electric Power | AC 3-Phase 220V/380V |
| Speed (bpm) | 50 ~ 200 |
| Diameter Of Product | Ø8 ~ 30mm |
| Height Of Product | 50 ~ 180mm |
| Height Of Label | 18 ~ 50mm |
| Thickness Of Label | 0.035 ~ 0.08 mm |
| Material Of Label | PVC / PET / OPS |
| Diameter Of Paper Core | 3” / 5” / 6” / 10” |

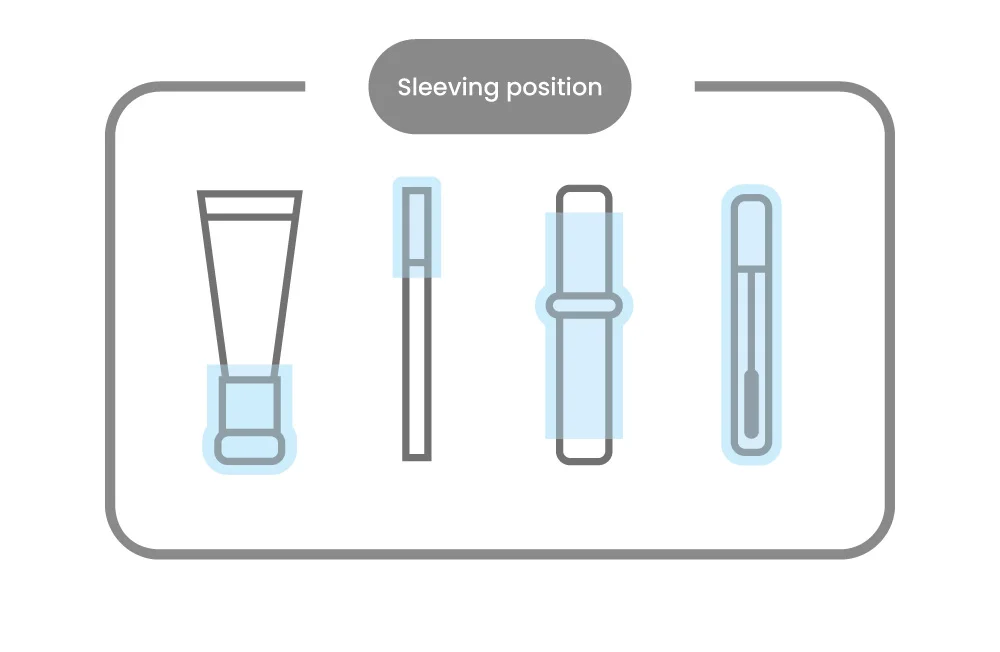

Container Diagram
Optional
Charge Coupled Device (CCD) Intelligent Vision Inspection System
Automatic Adjustment of mandrel
- Assists in rejecting products with sleeving errors.
- Aids in locating and correcting product direction.
Automatic Adjustment of mandrel
- Automatically adjusts the mandrel for different products, saving manual adjustment time.
- Enhances precision in mandrel positioning through an automated system.
