ACL-100 / 200 series

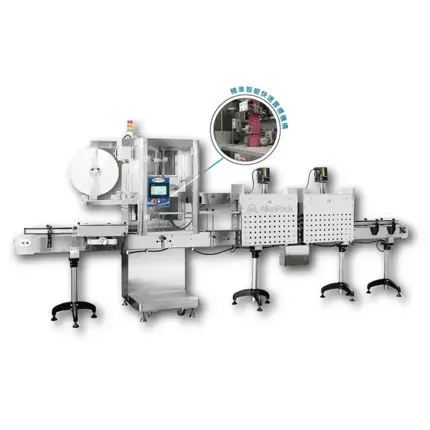

ECO-Sleever
The automatic shrink sleeving machine from Allen Pack can easily be integrated with your company's existing packaging lines or we can also provide a complete system which would include the applicator, conveyor, and heat tunnel. It’s suitable for all bottles with various width range and label position application.
Features
- Easy adjustment, operation, and maintenance.
- Strong structure - Making the machine more durable.
- Various production capacities for diverse applications.
- Performance guarantee and product warranty.
- Economical design helps save costs and improve efficiency.
Specification
| Model | ACL-100 | ACL-200 |
|---|---|---|
| Dimension | 1150W * 1000D * 2430H mm | |
| Electric Power | AC 3-Phase 220V/380V | |
| Speed (bpm) | 60~150 | 150~250 |
| Diameter Of Product | Ø25~90 mm | |
| Height Of Product | Max. 300 mm | |
| Material Of Label | PVC / PET / OPS | |
| Thickness Of Label | 0.035 - 0.08 mm | |
| Height Of Label | Max. 150 mm | |
| Diameter Of Paper Core | 3” / 5” / 6” / 10” | |
Container Diagram
Optional
Charge Coupled Device (CCD) Intelligent Vision Inspection System
Automatic Adjustment of mandrel
- Assists in rejecting products with sleeving errors.
- Aids in locating and correcting product direction.
Automatic Adjustment of mandrel
- Automatically adjusts the mandrel for different products, saving manual adjustment time.
- Enhances precision in mandrel positioning through an automated system.
